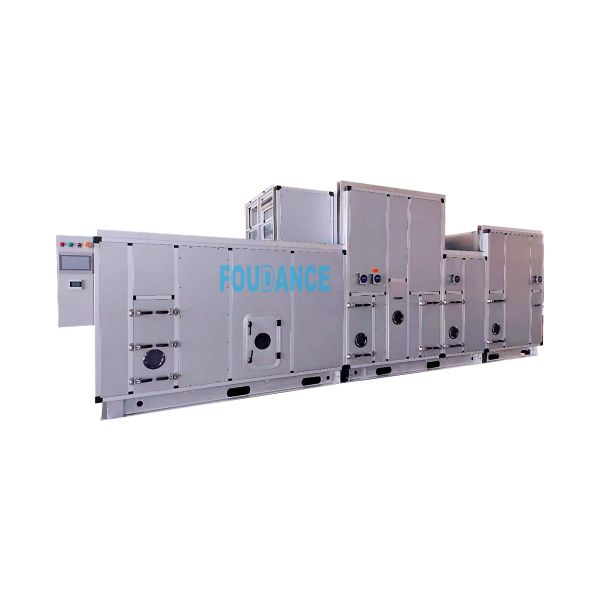

ZCH-20000 Low Humidity Lithium Battery Industry Desiccant Dehumidifier RH

  • 1
  • 2

Brand Name : FOUDANCE

Model Number : ZCH-20000

Certification : CE, ISO

Place of Origin : Hangzhou, China

MOQ : 1set

Payment Terms : T/T, LC

Supply Ability : 10000set/Year

Delivery Time : 60days

Packaging Details : Wooden Case

Desiccant Rotor : Sweden Proflute

Installed Power : 21.8kw

Product Name : Desiccant Dehumidifier

Supply Airflow : 20000m³ /h

Dry Air : T<25℃ RH<1%

Contact Now


ZCH-20000 Low Humidity Lithium Battery Industry Desiccant Dehumidifier RH<1%


A desiccant wheel dehumidifier is a type of dehumidifier that uses a desiccant material to remove moisture from the air. It is commonly used in industrial and commercial settings where precise humidity control is required.

Specifications:

ModelZCH—20000
RequirementsT<25±2℃,TL<-45℃
Total Process Airflow(m3/h)22500
Supply Airflow(m3/h)20000
Parameter of Supply AirT=15℃, TL≤-65℃
Fresh Airflow(m3/h)4000
Return Airflow(m3/h)18500
Rotor Process Airflow(m3/h)First RotorSecond Rotor
400020000
Rotor Reactivation Airflow(m3/h)13002500
Reactivation Temperature120±10℃135-140℃
Reactivation Electric Heating Power (kw)3060
Driving Motor Power(kw)0.10.2
Reactivation Fan Power(kw)1.5
First Fan Power(kw)1.5
Supply Blower Power(kw)18.5
Cooling Load(kw)209.7
Chilled Water Consumption(T≤7℃)( T/h)36
Power Supply380V/3P/50Hz
Installed Power(kw)111.8
ESP(External Static Pressure) (Pa)≥800

Competitive Advantage:

  • Sweden Proflute silicon gel wheel
  • A totally self contained unit
  • Siemens PLC + HMI automatic control system
  • Aluminum alloy frame, anti-cold bridge
  • Body modularization design, foam injected double wall casing
  • Stainless steel drain pan and bottom boards
  • Electric or steam heating or convert type can be available.
  • All operation parameters can be on-line observed, ensuring the operation reliability
  • High temperature safety thermostat cutout
  • Electrical interlocking of fan motors, heaters and rotor drive



Application:

ZCH-20000 Low Humidity Lithium Battery Industry Desiccant Dehumidifier RHZCH-20000 Low Humidity Lithium Battery Industry Desiccant Dehumidifier RH

Battery Dry Rooms

The development and manufacturing of lithium batteries needs to take place in ultra low humidity dry rooms, regardless of whether it is a small R&D lab environment or a large scale production facility.

Most manufacturers need the dry rooms to be maintained at a dew point of -40°C, and the industry standard could be even lower in the years to come. We have delivered dry rooms capable of -60°C, and have the best technology for the potential demands of the future.

Expertise in every application

Every different kind of lithium battery requires a different manufacturing environment. We provide market-leading technology for the entire range of applications, including:

  • Consumer electronics
  • Hybrid and electric vehicles
  • Electric grid storage
  • Forklifts
  • Telecoms
  • Medical devices
  • Power tools
  • Electric bikes and wheelchairs



User Friendly Automatic Interface Control System:

ZCH-20000 Low Humidity Lithium Battery Industry Desiccant Dehumidifier RH


ZCH-20000 Low Humidity Lithium Battery Industry Desiccant Dehumidifier RH

We can provide the technical design for dehumidification according to your requirements.
