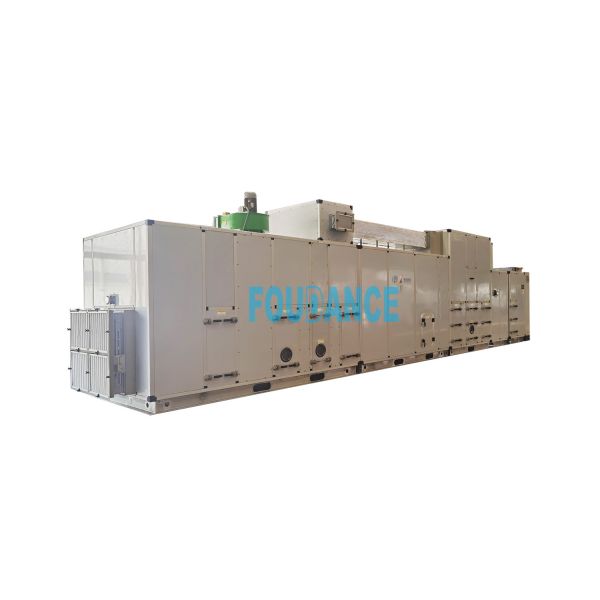

ZCH-40000 Super Low Humidity Industrial Desiccant Rotor Dehumidifier DP

  • 1
  • 2

Brand Name : FOUDANCE

Model Number : ZCH-40000

Certification : CE, ISO

Place of Origin : Hangzhou, China

MOQ : 1set

Payment Terms : T/T, LC

Supply Ability : 10000set/Year

Delivery Time : 60days

Packaging Details : Wooden Case

Desiccant Rotor : Import

Installed Power : 41.9kw

Parameter Name : Desiccant Dehumidifier

Supply Airflow : 40000m³ /h

Dry Air : T<25℃ DP<-40℃

Contact Now


ZCH-40000 Super Low Humidity Industrial Desiccant Rotor Dehumidifier DP<-40℃


Desiccant dehumidifiers are used in applications where low humidity levels are required, where operating temperatures are low, and where refrigerative dehumidifiers can not work or meet requirements.

Specifications:

ModelZCH—40000
RequirementsT<25±2℃,TL<-40℃
Total Process Airflow(m3/h)44000
Supply Airflow(m3/h)40000
Parameter of Supply AirT=14℃, TL≤-65℃
Fresh Airflow(m3/h)9000
Return Airflow(m3/h)35000
Rotor Process Airflow(m3/h)First RotorSecond Rotor
900040000
Rotor Reactivation Airflow(m3/h)30004000
Reactivation Temperature120±10℃135-140℃
Reactivation Steam Consumption (kg/h)108171
Driving Motor Power(kw)0.10.3
Reactivation Fan Power(kw)1.5
First Fan Power(kw)3.0
Supply Blower Power(kw)37
Cooling Load(kw)473.6
Chilled Water Consumption(T≤7℃)( T/h)81.5
Power Supply380V/3P/50Hz
Installed Power(kw)41.9
ESP(External Static Pressure) (Pa)≥800

Competitive Advantage:

  • Import silica gel wheel & molecular sieve wheel
  • A totally self contained unit
  • Siemens PLC + HMI automatic control system
  • Aluminum alloy frame, broken-cold bridge
  • Body modularization design, foam injected double wall casing
  • Stainless steel drain pan
  • Electric or steam heating or convert type can be available.
  • All operation parameters can be on-line observed, ensuring the operation reliability
  • High temperature safety thermostat cutout
  • Electrical interlocking of fan motors, heaters and rotor drive



Application:

ZCH-40000 Super Low Humidity Industrial Desiccant Rotor Dehumidifier DPZCH-40000 Super Low Humidity Industrial Desiccant Rotor Dehumidifier DP

Battery Dry Rooms

The development and manufacturing of lithium batteries needs to take place in ultra low humidity dry rooms, regardless of whether it is a small R&D lab environment or a large scale production facility.

Most manufacturers need the dry rooms to be maintained at a dew point of -40°C, and the industry standard could be even lower in the years to come. We have delivered dry rooms capable of -60°C, and have the best technology for the potential demands of the future.

Expertise in every application

Every different kind of lithium battery requires a different manufacturing environment. We provide market-leading technology for the entire range of applications, including:

  • Consumer electronics
  • Hybrid and electric vehicles
  • Electric grid storage
  • Forklifts
  • Telecoms
  • Medical devices
  • Power tools
  • Electric bikes and wheelchairs



User Friendly Automatic Interface Control System:

ZCH-40000 Super Low Humidity Industrial Desiccant Rotor Dehumidifier DP


ZCH-40000 Super Low Humidity Industrial Desiccant Rotor Dehumidifier DP

We can provide the technical design for dehumidification according to your requirements.
